AC220V SWT36100F Automatic Cable Tie Machine For Copper Tubes Bundle 0.9S

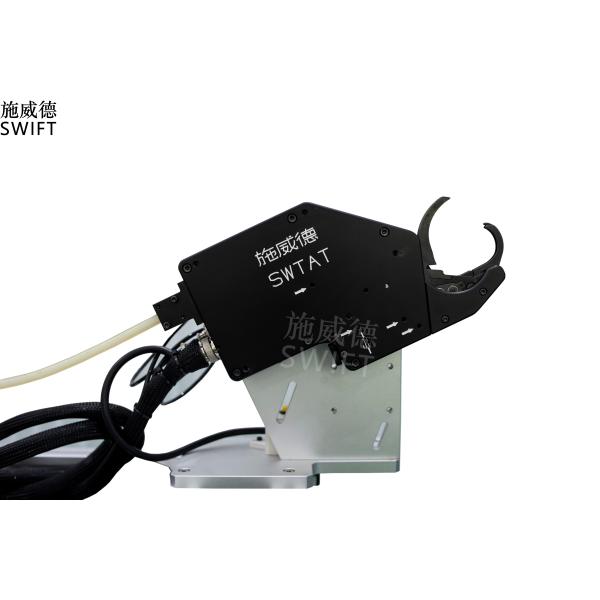

Automatic cable tie tool for cooper tubes binding, SWT36100F is a fixed cable tie gun. It is easy to bind them quickly.
Features cable tie cutter
1. Loose cable ties: Width 3.6 * Length 100mm, Cable ties model: T36100.
2. The bundle speed is 0.9S, including the bundling, threading and tightening, cutting off cable ties.
3. When to tread foot pedal, cable ties would be sent to the gun and are bundled automatically.
4. The binding force (2kgf- 8kgf) is adjusted by turning knob.
5. Auto clean and restart: if cable ties jammed, the cable tie machine would automatically clean then restart.
SWT36100F base data
| Brand | SWIFT |
| Name | SWT36100F |
| Features and advantages | 1. Loose cable ties T36100; 2. It takes 0.9S to thread, pull and tighten, cut off cable ties.. 3. The binding force is adjustable. 4. The tool gun is fixed in the bench. |
| Tool gun size | L27 * W24 * H14cm; N.W.: 4kg |
| Host machine size | L69* W67 * H67cm |
| Cable ties | T36100, loose cable ties |
| Material | Nylon 66 certified by UL, RoHS etc. |
| Width | 3.6mm |
| Length | 100mm |
| Quantity/bag | 1,000pcs |
| Bundling Max Dia. for wire | Ø18.0mm |
| Bundling Max Dia. for tube | Ø16.0mm |
| Bundling Max Dia. | Ø2.0mm |
| Cycle time / Bundling speed | 0.9S |
| Operation | Electric powered |
| Tool head power | DC48V (auto switch) |
| Power supply | AC220V, 50/60Hz; Euro plug |
| Pneumatic pressure | 5kg/cm² |
| Max power | 1,000W |
| Tension force | Adjustable |
How to adjust the tension force?
The fixed cable tie gun has a knob. Pls turn it to adjust the tension forces.
There are four tension forces.
| The number | 0 | 1 | 2 | 3 |
| The value | 2kg | 4kg | 6kg | 8kg |
Trade terms
| 1. Payment term: 70% TT payment before production; 30% payment before ship. |
| 2. Price: EXW, Fob Shenzhen, CIF and so on. |
| 3. Shipment ways: by sea, by air, or by express |
| 4. Sea port: Shenzhen |
Service
1. We are online 24hours. If you have any questions, pls contact us anytime.
2. We have a professional team and will meet your requires.
3. SWIFT backs up its products with an efficient, cost effective after sales service, including free telephone support and quick response times.
4. We provide 12months warranty and tech support forever.
Packing details
Be packed in wooden cases.
